Guest dwhiteside64 Posted April 3, 2015 Share Posted April 3, 2015 I was hoping that I could get some advice concerning the transmission downshift wire connection on a '64 ST400. I was cleaning my transmission today and I noticed that the yellow wire for the downshift circuit was hanging on the side of the transmission (I may have inadvertently knocked it loose). I put it on the nearest stab-on connection and thought it good until I started reading posts that said it is a vertical connection as opposed to a horizontal one that I now have it connected to (see photo - shows driver's side view of transmission). Can someone confirm that I have it connected to the right place? I cannot see any other connector near the natural lay of the wire. Just want to be 100% sure. Thanks. Link to comment Share on other sites More sharing options...

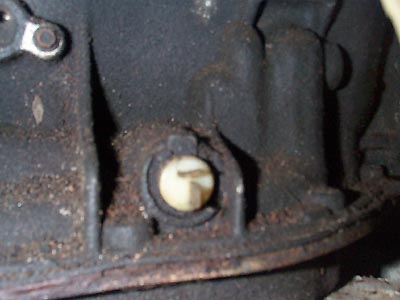

Guest dwhiteside64 Posted April 3, 2015 Share Posted April 3, 2015 (edited) After posting this question I determined through research that the horizontal and vertical connections refer to the two wire '65-'67 ST400 (with switch pitch - see photo). As you can see, the connection is in roughly the same area as in '64 but there is a horizontal and vertical stab-on in that location (as opposed to the '64 which only needs one wire for downshift). Please feel free to add anything I may be missing.... Edited April 3, 2015 by dwhiteside64 (see edit history) Link to comment Share on other sites More sharing options...
RivNut Posted April 3, 2015 Share Posted April 3, 2015 Darren good research. The only thing that I might add is a little FYI. That the yellow wire gets 12V through the wiper fuse. Ed Link to comment Share on other sites More sharing options...
Guest dwhiteside64 Posted April 4, 2015 Share Posted April 4, 2015 Thanks Ed you are one of the guys that I was hoping could confirm this as you are very knowledgeable on the subject. thanks for the added info as well.... Link to comment Share on other sites More sharing options...
